ECS-100-20-5PVX,E?CS伊西斯石英贴片晶振,CSM-7SSX无源谐振器

当前位置：首页 » 晶振厂家 » ECS晶振 » ECS-100-20-5PVX,E?CS伊西斯石英贴片晶振,CSM-7SSX无源谐振器

prevnext

ECS-100-20-5PVX,E?CS伊西斯石英贴片晶振,CSM-7SSX无源谐振器

原厂型号 Original model ：	ECS-100-20-5PVX
品牌 brand ：	ECS欧美晶振
型号名称 Model name：	CSM-7SSX
Type 系列：	MHz Crystal
频率 frequency ：	10MHz
Frequency Stability频率稳定度	±50ppm
frequency tolerance频率容差	±30ppm
Load capacitance 负载电容	20pF

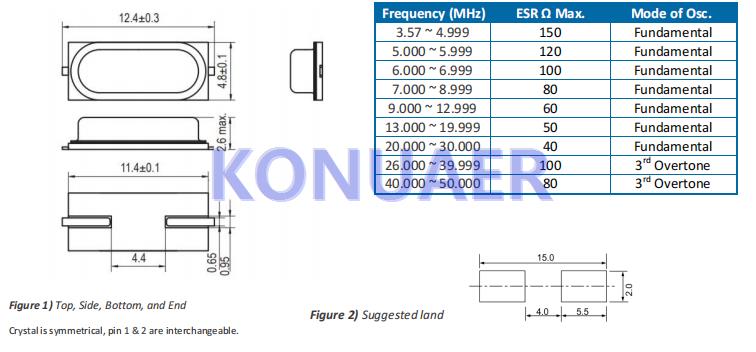

Size / Dimension 尺寸	11.40mm x 4.70mm

订购热线：0755-27838351

ECS-100-20-5PVX,ECS伊西斯石英贴片晶振,CSM-7SSX无源谐振器

原厂型号 Original model ：	ECS-100-20-5PVX	品牌 brand ：	ECS伊西斯晶振
品牌 brand ：	ECS伊西斯晶振	ESR（等效串联电阻）ESR (Equivalent Series Resistance)	60 Ohm
型号名称 Model name：	CSM-7SSX	温度 Operating Temperature	-10°C ~ 70°C
Type 系列：	MHz Crystal	脚位 Termination：	2 pad
频率 frequency ：	10MHz	封装类型 Package Type：	HC49/US
Frequency Stability频率稳定度	±50ppm	高度 Package Height：	2.60mm
frequency tolerance频率容差	±30ppm	最小包装数 MPQ ：	-
Load capacitance 负载电容	20pF	包装 Packaging：	Tape and Reel
Size / Dimension 尺寸	11.40mm x 4.70mm	安装方式 Mounting Style：	Surface Mount

ECS-100-20-5PVX,ECS伊西斯石英贴片晶振,CSM-7SSX无源谐振器

ECS-98.3-20-5P-TR	CSM-7	MHz Crystal	9.8304MHz	±50ppm	±30ppm	20pF	50 Ohm
ECS-98.3-S-5P-TR	CSM-7	MHz Crystal	9.8304MHz	±50ppm	±30ppm	Series	50 Ohm
ECS-98.4375-CDX-0314-TR	CSM-7	MHz Crystal	9.84375MHz	±50ppm	±30ppm	10pF	30 Ohm
ECS-100-20-5PVX	CSM-7SSX	MHz Crystal	10MHz	±50ppm	±30ppm	20pF	60 Ohm
ECS-110.5-20-5PVX	CSM-7SSX	MHz Crystal	11.0592MHz	±50ppm	±30ppm	20pF	60 Ohm
ECS-120-18-5PVX	CSM-7SSX	MHz Crystal	12MHz	±50ppm	±30ppm	18pF	60 Ohm
ECS-120-32-5PVX	CSM-7SSX	MHz Crystal	12MHz	±50ppm	±30ppm	32pF	60 Ohm
ECS-122.8-20-5PVX	CSM-7SSX	MHz Crystal	12.288MHz	±50ppm	±30ppm	20pF	60 Ohm
ECS-143-20-5PVX	CSM-7SSX	MHz Crystal	14.31818MHz	±50ppm	±30ppm	20pF	50 Ohm
ECS-147.4-20-5PVX	CSM-7SSX	MHz Crystal	14.7456MHz	±50ppm	±30ppm	20pF	50 Ohm
ECS-160-20-5PVX	CSM-7SSX	MHz Crystal	16MHz	±50ppm	±30ppm	20pF	50 Ohm
ECS-184-20-5PVX	CSM-7SSX	MHz Crystal	18.432MHz	±50ppm	±30ppm	20pF	50 Ohm
ECS-200-20-5PVX	CSM-7SSX	MHz Crystal	20MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-240-20-5PVX	CSM-7SSX	MHz Crystal	24MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-245.7-20-5PVX	CSM-7SSX	MHz Crystal	24.576MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-250-20-5PVX	CSM-7SSX	MHz Crystal	25MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-270-20-5PVX	CSM-7SSX	MHz Crystal	27MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-35-18-5PVX	CSM-7SSX	MHz Crystal	3.579545MHz	±50ppm	±30ppm	18pF	150 Ohm
ECS-36-20-5PVX	CSM-7SSX	MHz Crystal	3.6864MHz	±50ppm	±30ppm	20pF	150 Ohm
ECS-40-20-5PVX	CSM-7SSX	MHz Crystal	4MHz	±50ppm	±30ppm	20pF	150 Ohm
ECS-60-20-5PVX	CSM-7SSX	MHz Crystal	6MHz	±50ppm	±30ppm	20pF	100 Ohm
ECS-80-20-5PVX	CSM-7SSX	MHz Crystal	8MHz	±50ppm	±30ppm	20pF	80 Ohm
ECS-98.3-20-5PVX	CSM-7SSX	MHz Crystal	9.8304MHz	±50ppm	±30ppm	20pF	60 Ohm
ECS-100-18-5PX-TR	CSM-7X	MHz Crystal	10MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-100-S-5PX-TR	CSM-7X	MHz Crystal	10MHz	±50ppm	±30ppm	Series	50 Ohm
ECS-102.4-18-5PXEN	CSM-7X	MHz Crystal	10.24MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-102.45-16-5PX-TR	CSM-7X	MHz Crystal	10.245MHz	±50ppm	±30ppm	16pF	50 Ohm
ECS-110.5-18-5PXEN-TR	CSM-7X	MHz Crystal	11.0592MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-110.5-20-5PX-TR	CSM-7X	MHz Crystal	11.0592MHz	±50ppm	±30ppm	20pF	50 Ohm
ECS-110.5-32-5PX-TR	CSM-7X	MHz Crystal	11.0592MHz	±50ppm	±30ppm	32pF	50 Ohm
ECS-110.5-S-5PX-TR	CSM-7X	MHz Crystal	11.0592MHz	±50ppm	±30ppm	Series	50 Ohm
ECS-110-18-5PXEN-TR	CSM-7X	MHz Crystal	11MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-115.2-18-5PXEN	CSM-7X	MHz Crystal	11.52MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-120.003-18-5PXEN	CSM-7X	MHz Crystal	12.000393MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-120-18-5PX-TR	CSM-7X	MHz Crystal	12MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-120-32-5PX-TR	CSM-7X	MHz Crystal	12MHz	±50ppm	±30ppm	32pF	50 Ohm
ECS-120-S-5PX-TR	CSM-7X	MHz Crystal	12MHz	±50ppm	±30ppm	Series	50 Ohm
ECS-122.8-18-5PXEN-TR	CSM-7X	MHz Crystal	12.288MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-122.8-20-5PX-TR	CSM-7X	MHz Crystal	12.288MHz	±50ppm	±30ppm	20pF	50 Ohm
ECS-122.8-S-5PX-TR	CSM-7X	MHz Crystal	12.288MHz	±50ppm	±30ppm	Series	50 Ohm
ECS-135.6-12-5PX-TR	CSM-7X	MHz Crystal	13.56MHz	±50ppm	±30ppm	12pF	40 Ohm
ECS-135-18-5PXEN-TR	CSM-7X	MHz Crystal	13.5168MHz	±50ppm	±30ppm	18pF	40 Ohm
ECS-143-18-5PXEN-TR	CSM-7X	MHz Crystal	14.31818MHz	±50ppm	±30ppm	18pF	40 Ohm
ECS-143-20-5PX-TR	CSM-7X	MHz Crystal	14.31818MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-143-S-5PX-TR	CSM-7X	MHz Crystal	14.31818MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-147.4-18-5PXEN-TR	CSM-7X	MHz Crystal	14.7456MHz	±50ppm	±30ppm	18pF	40 Ohm
ECS-147.4-20-5PX-TR	CSM-7X	MHz Crystal	14.7456MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-147.4-S-5PX-TR	CSM-7X	MHz Crystal	14.7456MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-150-18-5PXEN	CSM-7X	MHz Crystal	15MHz	±50ppm	±30ppm	18pF	40 Ohm
ECS-150-S-5PX-TR	CSM-7X	MHz Crystal	15MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-160.003-18-5PXEN-TR	CSM-7X	MHz Crystal	16.000312MHz	±50ppm	±30ppm	18pF	40 Ohm
ECS-160.003-18-5PX-TR	CSM-7X	MHz Crystal	16.000312MHz	±50ppm	±30ppm	18pF	40 Ohm
ECS-160-18-5PXEN-TR	CSM-7X	MHz Crystal	16MHz	±50ppm	±30ppm	18pF	40 Ohm
ECS-160-20-5PX-TR	CSM-7X	MHz Crystal	16MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-160-S-5PX-TR	CSM-7X	MHz Crystal	16MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-162.57-18-5PXEN-TR	CSM-7X	MHz Crystal	16.257MHz	±50ppm	±30ppm	18pF	40 Ohm
ECS-163-18-5PXEN-TR	CSM-7X	MHz Crystal	16.384MHz	±50ppm	±30ppm	18pF	40 Ohm
ECS-177.3-18-5PXEN	CSM-7X	MHz Crystal	17.734475MHz	±50ppm	±30ppm	18pF	40 Ohm
ECS-180-18-5PXEN	CSM-7X	MHz Crystal	18MHz	±50ppm	±30ppm	18pF	40 Ohm
ECS-180-S-5PX-TR	CSM-7X	MHz Crystal	18MHz	±50ppm	±30ppm	Series	40 Ohm
