ECS-071.505-CD-0370,ECS欧美晶振,CSM-7无源贴片晶振

原厂型号 Original model ：	ECS-071.505-CD-0370
品牌 brand ：	ECS石英贴片晶振
型号名称 Model name：	CSM-7
Type 系列：	MHz Crystal
频率 frequency ：	7.1505MHz
Frequency Stability频率稳定度	±30ppm
frequency tolerance频率容差	±30ppm
Load capacitance 负载电容	12pF

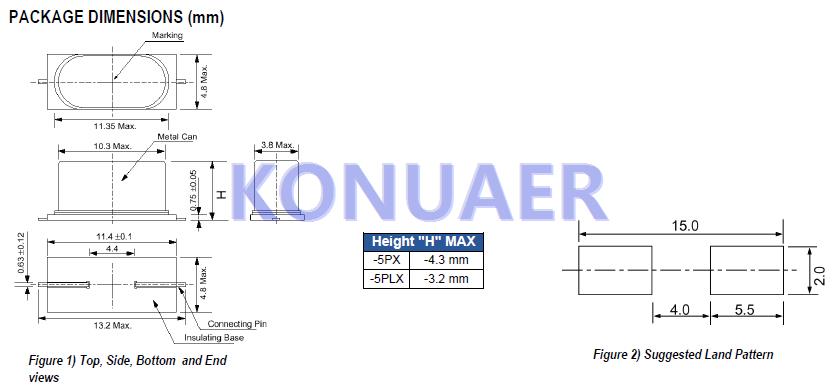

Size / Dimension 尺寸	11.40mm x 4.80mm

订购热线：0755-27838351

ECS-071.505-CD-0370,ECS欧美晶振,CSM-7无源贴片晶振

原厂型号 Original model ：	ECS-071.505-CD-0370	品牌 brand ：	ECS伊西斯晶振
品牌 brand ：	ECS伊西斯晶振	ESR（等效串联电阻）ESR (Equivalent Series Resistance)	40 Ohm
型号名称 Model name：	CSM-7	温度 Operating Temperature	-10°C ~ 70°C
Type 系列：	MHz Crystal	脚位 Termination：	2 pad
频率 frequency ：	7.1505MHz	封装类型 Package Type：	HC49/US
Frequency Stability频率稳定度	±30ppm	高度 Package Height：	4.30mm
frequency tolerance频率容差	±30ppm	最小包装数 MPQ ：	-
Load capacitance 负载电容	12pF	包装 Packaging：	Tape and Reel
Size / Dimension 尺寸	11.40mm x 4.80mm	安装方式 Mounting Style：	Surface Mount

ECS-071.505-CD-0370,ECS欧美晶振,CSM-7无源贴片晶振

ECS-100-20-28AX-TR	CSM-4AX	MHz Crystal	10MHz	±50ppm	±30ppm	20pF	60 Ohm
ECS-110.5-20-28AX-TR	CSM-4AX	MHz Crystal	11.0592MHz	±50ppm	±30ppm	20pF	60 Ohm
ECS-120-18-28AX-TR	CSM-4AX	MHz Crystal	12MHz	±50ppm	±30ppm	18pF	60 Ohm
ECS-120-32-28AX-TR	CSM-4AX	MHz Crystal	12MHz	±50ppm	±30ppm	32pF	60 Ohm
ECS-120-S-28AX-TR	CSM-4AX	MHz Crystal	12MHz	±50ppm	±30ppm	Series	60 Ohm
ECS-122.8-20-28AX-TR	CSM-4AX	MHz Crystal	12.288MHz	±50ppm	±30ppm	20pF	60 Ohm
ECS-143-20-28AX-TR	CSM-4AX	MHz Crystal	14.31818MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-147.4-20-28AX-TR	CSM-4AX	MHz Crystal	14.7456MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-147.4-S-28AX-TR	CSM-4AX	MHz Crystal	14.7456MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-160-20-28AX-TR	CSM-4AX	MHz Crystal	16MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-160-S-28AX-TR	CSM-4AX	MHz Crystal	16MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-184-20-28AX-TR	CSM-4AX	MHz Crystal	18.432MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-200-20-28AX-TR	CSM-4AX	MHz Crystal	20MHz	±50ppm	±30ppm	20pF	30 Ohm
ECS-240-12-28AX-TR	CSM-4AX	MHz Crystal	24MHz	±50ppm	±30ppm	12pF	30 Ohm
ECS-240-20-28AX-TR	CSM-4AX	MHz Crystal	24MHz	±50ppm	±30ppm	20pF	30 Ohm
ECS-250-18-28AX	CSM-4AX	MHz Crystal	25MHz	±50ppm	±30ppm	18pF	30 Ohm
ECS-250-20-28AX-F-TR	CSM-4AX	MHz Crystal	25MHz	±50ppm	±30ppm	20pF	30 Ohm
ECS-36-20-28AX-TR	CSM-4AX	MHz Crystal	3.6864MHz	±50ppm	±30ppm	20pF	200 Ohm
ECS-40-20-28AX-TR	CSM-4AX	MHz Crystal	4MHz	±50ppm	±30ppm	20pF	200 Ohm
ECS-60-32-28AX-TR	CSM-4AX	MHz Crystal	6MHz	±50ppm	±30ppm	32pF	100 Ohm
ECS-73-20-28AX-TR	CSM-4AX	MHz Crystal	7.3728MHz	±50ppm	±30ppm	20pF	80 Ohm
ECS-80-16-28AX-TR	CSM-4AX	MHz Crystal	8MHz	±50ppm	±30ppm	16pF	80 Ohm
ECS-071.505-CD-0370	CSM-7	MHz Crystal	7.1505MHz	±30ppm	±20ppm	12pF	40 Ohm
ECS-071.505-CD-0370TR	CSM-7	MHz Crystal	7.1505MHz	±30ppm	±20ppm	12pF	40 Ohm
ECS-071.505-CDX-0370	CSM-7	MHz Crystal	7.1505MHz	±30ppm	±20ppm	12pF	40 Ohm
ECS-098.438-CD-0371	CSM-7	MHz Crystal	9.8438MHz	±30ppm	±20ppm	12pF	40 Ohm
ECS-098.438-CD-0371TR	CSM-7	MHz Crystal	9.8438MHz	±30ppm	±20ppm	12pF	40 Ohm
ECS-098.438-CDX-0371	CSM-7	MHz Crystal	9.8438MHz	±30ppm	±20ppm	12pF	40 Ohm
ECS-100-18-5P-TR	CSM-7	MHz Crystal	10MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-100-20-5PDP-TR	CSM-7	MHz Crystal	10MHz	±100ppm	±30ppm	20pF	50 Ohm
ECS-100-S-5P-TR	CSM-7	MHz Crystal	10MHz	±50ppm	±30ppm	Series	50 Ohm
ECS-110.5-20-5P-TR	CSM-7	MHz Crystal	11.0592MHz	±50ppm	±30ppm	20pF	50 Ohm
ECS-110.5-32-5P-TR	CSM-7	MHz Crystal	11.0592MHz	±50ppm	±30ppm	32pF	50 Ohm
ECS-110.5-S-5P-TR	CSM-7	MHz Crystal	11.0592MHz	±50ppm	±30ppm	Series	50 Ohm
ECS-110-S-5P-TR	CSM-7	MHz Crystal	11MHz	±50ppm	±30ppm	Series	50 Ohm
ECS-120.003-18-5PTR	CSM-7	MHz Crystal	12.000393MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-120-18-5P-TR	CSM-7	MHz Crystal	12MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-120-20-5PDN-TR	CSM-7	MHz Crystal	12MHz	±100ppm	±30ppm	20pF	50 Ohm
ECS-120-32-5P-TR	CSM-7	MHz Crystal	12MHz	±50ppm	±30ppm	32pF	50 Ohm
ECS-120-S-5P-TR	CSM-7	MHz Crystal	12MHz	±50ppm	±30ppm	Series	50 Ohm
ECS-122.8-20-5P-TR	CSM-7	MHz Crystal	12.288MHz	±50ppm	±30ppm	20pF	50 Ohm
ECS-122.8-S-5P-TR	CSM-7	MHz Crystal	12.288MHz	±50ppm	±30ppm	Series	50 Ohm
ECS-130.625-CD-0373	CSM-7	MHz Crystal	13.0625MHz	±30ppm	±20ppm	12pF	30 Ohm
ECS-130.625-CD-0373TR	CSM-7	MHz Crystal	13.0625MHz	±30ppm	±20ppm	12pF	30 Ohm
ECS-130.625-CDX-0373	CSM-7	MHz Crystal	13.0625MHz	±30ppm	±20ppm	12pF	30 Ohm
ECS-135.600-CD-0374	CSM-7	MHz Crystal	13.56MHz	±30ppm	±20ppm	12pF	30 Ohm
ECS-135.600-CD-0374TR	CSM-7	MHz Crystal	13.56MHz	±30ppm	±20ppm	12pF	30 Ohm
ECS-135.600-CDX-0374	CSM-7	MHz Crystal	13.56MHz	±30ppm	±20ppm	12pF	30 Ohm
ECS-135.60-CDX-0317-TR	CSM-7	MHz Crystal	13.56MHz	±50ppm	±30ppm	10pF	30 Ohm
ECS-143-20-5PDN-TR	CSM-7	MHz Crystal	14.31818MHz	±100ppm	±30ppm	20pF	40 Ohm
ECS-143-20-5P-TR	CSM-7	MHz Crystal	14.31818MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-143-S-5P-TR	CSM-7	MHz Crystal	14.31818MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-147.4-20-5P-TR	CSM-7	MHz Crystal	14.7456MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-147.4-S-5P-TR	CSM-7	MHz Crystal	14.7456MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-150-S-5P-TR	CSM-7	MHz Crystal	15MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-160.003-18-5PTR	CSM-7	MHz Crystal	16.000312MHz	±50ppm	±30ppm	18pF	40 Ohm
ECS-160-20-5PDN-TR	CSM-7	MHz Crystal	16MHz	±100ppm	±30ppm	20pF	40 Ohm
ECS-160-20-5P-TR	CSM-7	MHz Crystal	16MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-160-S-5P-TR	CSM-7	MHz Crystal	16MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-162.5-20-5P-TR	CSM-7	MHz Crystal	16.257MHz	±50ppm	±30ppm	20pF	40 Ohm
