XTL751-S999-544,XTL751晶振,32.768K无源晶体谐振器,1610希华晶振,台湾进口晶振

原厂型号 Original model ：	XTL751-S999-544
品牌 brand ：	Siward晶振
型号名称 Model name：	XTL75
Type 系列：	kHz Crystal
频率 frequency ：	32.768 k无源晶振
Frequency Stability频率稳定度	-
frequency tolerance频率容差	±20ppm
Load capacitance 负载电容	12.5pF

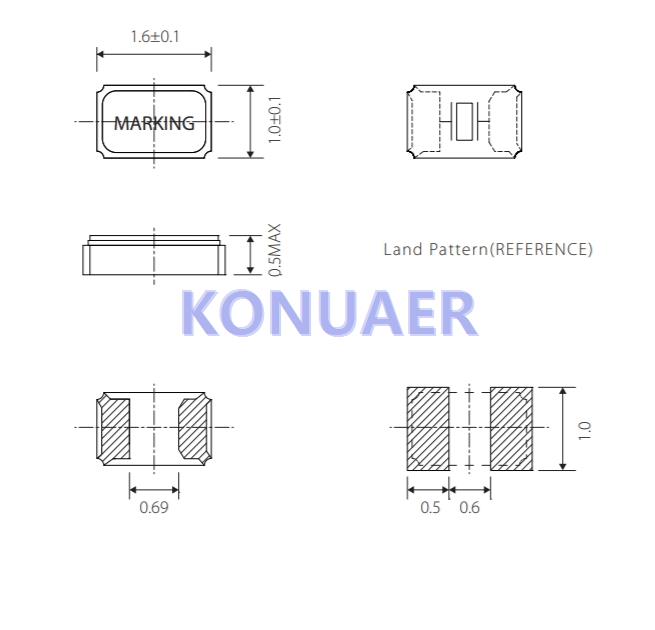

Size / Dimension 尺寸	1.60mm x 1.00mm

订购热线：0755-27838351

XTL751-S999-544,XTL751晶振,32.768K无源晶体谐振器,1610希华晶振,台湾进口晶振

原厂型号 Original model ：	XTL751-S999-544	品牌 brand ：	Siward晶振
品牌 brand ：	Siward希华晶振	ESR (Equivalent Series Resistance)ESR（等效串联电阻）	-
型号名称 Model name：	XTL75	Operating Temperature温度	-40°C ~ 85°C
Type 系列：	kHz Crystal	Termination 脚位	2 pad
频率 frequency ：	32.768 kHz	Package Type 封装类型	2-SMD
Frequency Stability频率稳定度	-	Package Height 高度	0.50mm
frequency tolerance 频率容差	±20ppm	最小包装数 MPQ ：	3000 / reel
Load capacitance 负载电容	12.5pF	Packaging 包装	Tape and Reel
Size / Dimension 尺寸	1.60mm x 1.00mm	Mounting Style 安装方式	Surface Mount

XTL751-S999-544,XTL751晶振,32.768K无源晶体谐振器,1610希华晶振,台湾进口晶振

XTL721-Q23-048	Siward晶振	XTL72	kHz Crystal	32.768 kHz	±20ppm	6pF	-40°C ~ 85°C	2-SMD
XTL721-S349-005	Siward晶振	XTL72	kHz Crystal	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C	2-SMD
XTL721-S999-301	Siward晶振	XTL72	kHz Crystal	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C	2-SMD
XTL721-S999-429	Siward晶振	XTL72	kHz Crystal	32.768 kHz	±20ppm	6pF	-40°C ~ 85°C	2-SMD
XTL741-S999-319	Siward晶振	XTL74	kHz Crystal	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C	2-SMD
XTL741-U11-402	Siward晶振	XTL74	kHz Crystal	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C	2-SMD
XTL741-S999-298	Siward晶振	XTL74	kHz Crystal	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C	2-SMD
XTL741-S999-379	Siward晶振	XTL74	kHz Crystal	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C	2-SMD
XTL741-S999-327	Siward晶振	XTL74	kHz Crystal	32.768 kHz	±20ppm	4pF	-40°C ~ 85°C	2-SMD
XTL721-S999-286	Siward晶振	XTL72	kHz Crystal	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C	2-SMD
XTL751-S999-544	Siward晶振	XTL75	kHz Crystal	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C	2-SMD
XTL751-S999-548	Siward晶振	XTL75	kHz Crystal	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C	2-SMD
XTL751-S999-420	Siward晶振	XTL75	kHz Crystal	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C	2-SMD
CGX70502-13.800-G108	Siward晶振	CGX-70502	MHz Crystal	13.8 MHz	±50ppm	16pF	-10°C ~ 60°C	2-SMD
CGX70502-14.050-G109	Siward晶振	CGX-70502	MHz Crystal	14.05 MHz	±50ppm	16pF	-10°C ~ 60°C	2-SMD
CGX70502-14.800-H134	Siward晶振	CGX-70502	MHz Crystal	14.8 MHz	±50ppm	16pF	-10°C ~ 60°C	2-SMD
CGX70502-15.425-H135	Siward晶振	CGX-70502	MHz Crystal	15.425 MHz	±50ppm	16pF	-10°C ~ 60°C	2-SMD
CGX70502-15.925-H136	Siward晶振	CGX-70502	MHz Crystal	15.925 MHz	±50ppm	16pF	-10°C ~ 60°C	2-SMD
CGX70502-16.300-H137	Siward晶振	CGX-70502	MHz Crystal	16.3 MHz	±50ppm	16pF	-10°C ~ 60°C	2-SMD
XTL581100-J96-011	Siward晶振	SX-2520	MHz Crystal	16 MHz	±10ppm	8pF	-20 ℃~70 ℃	4-SMD
XTL571200-K114-002	Siward晶振	SX-3225	MHz Crystal	12 MHz	±10ppm	10pF	-40°C ~ 85°C	4-SMD
XTL571150-F98-063	Siward晶振	SX-3225	MHz Crystal	24 MHz	±15ppm	18pF	-20 ℃~70 ℃	4-SMD
XTL571100-H201-493	Siward晶振	SX-3225	MHz Crystal	25 MHz	±10ppm	12pF	-20 ℃~70 ℃	4-SMD
XTL541200-C282-030	Siward晶振	SX-5032	MHz Crystal	8 MHz	±20ppm	20pF	-40°C ~ 85°C	4-SMD
XTL5A1100-M118-056	Siward晶振	SXT-2520	MHz Crystal	26 MHz	±10ppm	7pF	-30°C ~ 85°C	4-SMD
XTL5A1100-M118-132	Siward晶振	SXT-2520	MHz Crystal	26 MHz	±10ppm	7pF	-30°C ~ 105°C	4-SMD
XTL5A1100-S362-009	Siward晶振	SXT-2520	MHz Crystal	26 MHz	±10ppm	9pF	-30°C ~ 85°C	4-SMD
XTL55S16-S208-018TR4	Siward晶振	SX-4025	MHz Crystal	16 MHz	±10ppm	9pF	-20 ℃~75 ℃	4-SMD
XTL721-G78-1609	Siward晶振	CSF-3215	kHz Crystal	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C	2-SMD
XTL741-R53-039	Siward晶振	SF-2012	kHz Crystal	32 kHz	±20ppm	12.5pF	-40°C ~ 85°C	2-SMD
XTL741-S999-321	Siward晶振	SF-2012	kHz Crystal	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C	2-SMD
XTL501100-F98-044	Siward晶振	SX-2016	MHz Crystal	24 MHz	±10ppm	8pF	20 ℃~75 ℃	4-SMD
XTL501100-S413-007	Siward晶振	SX-2016	MHz Crystal	32 MHz	±10ppm	9pF	-20 ℃~75 ℃	4-SMD
XTL541200-C282-030	Siward晶振	SX-5032	MHz Crystal	8 MHz	±20ppm	20pF	-40°C ~ 85°C	4-SMD
XTL571100-C249-064	Siward晶振	SX-3225	MHz Crystal	37.4 MHz	±10ppm	10pF	-10°C ~ 70°C	4-SMD
XTL571100-F98-020	Siward晶振	SX-3225	MHz Crystal	12 MHz	±10ppm	10pF	-20 ℃~70 ℃	4-SMD
XTL571100-H201-493	Siward晶振	SX-3225	MHz Crystal	25 MHz	±10ppm	12pF	-20 ℃~70 ℃	4-SMD
XTL571100-M118-048	Siward晶振	SX-3225	MHz Crystal	26 MHz	±10ppm	7.3pF	-20 ℃~75 ℃	4-SMD
XTL571100-N98-008	Siward晶振	SX-3225	MHz Crystal	25 MHz	±10ppm	20pF	-20 ℃~75 ℃	4-SMD
XTL571150-F98-063	Siward晶振	SX-3225	MHz Crystal	24 MHz	±15ppm	18pF	-20 ℃~75 ℃	4-SMD
XTL571150-G47-219	Siward晶振	SX-3225	MHz Crystal	25 MHz	±10ppm	18pF	-40°C ~ 85°C	4-SMD
XTL571150-M118-070	Siward晶振	SX-3225	MHz Crystal	40 MHz	±7ppm	13pF	-40°C ~ 85°C	4-SMD
XTL571200-H201-177	Siward晶振	SX-3225	MHz Crystal	32 MHz	±10ppm	9pF	-40°C ~ 85°C	4-SMD
XTL571200-V42-001	Siward晶振	SX-3225	MHz Crystal	12 MHz	±20ppm	20pF	-10°C ~ 70°C	4-SMD
XTL571300-U11-279	Siward晶振	SX-3225	MHz Crystal	12 MHz	±30ppm	12pF	-40°C ~ 85°C	4-SMD
XTL581100-J96-011	Siward晶振	SX-2520	MHz Crystal	16 MHz	±10ppm	8pF	-20 ℃~70 ℃	4-SMD
XTL581100-M171-008	Siward晶振	SX-2520	MHz Crystal	38.4 MHz	±10ppm	10pF	-30°C ~ 85°C	4-SMD
XTL581200-G47-319	Siward晶振	SX-2520	MHz Crystal	12 MHz	±10ppm	10pF	-40°C ~ 85°C	4-SMD
XTL581150-G47-223	Siward晶振	SX-2520	MHz Crystal	40 MHz	±10ppm	12pF	-30°C ~ 85°C	4-SMD
XTL501300-A292-004	Siward晶振	SX-2016	MHz Crystal	16 MHz	±20ppm	9pF	-40°C ~ 85°C	4-SMD
