FCX9M00800018Y2J,Fujicom石英晶振,FCX-9M无源晶振

当前位置：首页 » 进口晶振 » Fujicom晶振 » FCX9M00800018Y2J,Fujicom石英晶振,FCX-9M无源晶振

prevnext

FCX9M00800018Y2J,Fujicom石英晶振,FCX-9M无源晶振

原厂型号 Original model ：	FCX9M00800018Y2J
品牌 brand ：	Fujicom晶振
型号名称 Model name：	FCX-9M
Type 系列：	MHz Crystal
频率 frequency ：	8 MHz
Frequency Stability频率稳定度	±30ppm
frequency tolerance频率容差	±15ppm
Load capacitance 负载电容	18pF

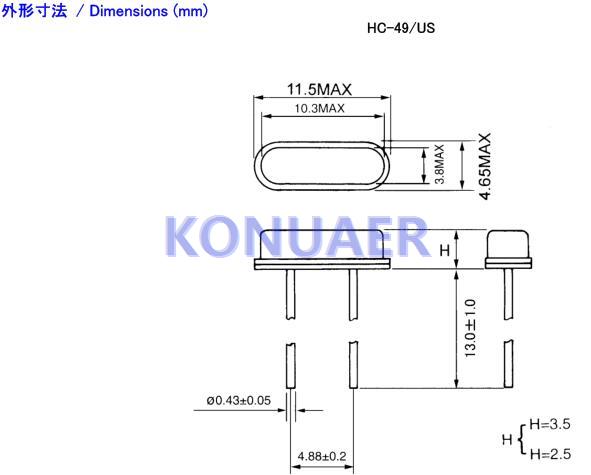

Size / Dimension 尺寸	11.40mm x 4.50mm

订购热线：0755-27838351

FCX9M00800018Y2J,Fujicom石英晶振,FCX-9M无源晶振

原厂型号 Original model ：	FCX9M00800018Y2J	品牌 brand ：	Fujicom晶振
品牌 brand ：	Fujicom无源晶振	ESR（等效串联电阻）ESR (Equivalent Series Resistance)	80 Ohms
型号名称 Model name：	FCX-9M	温度 Operating Temperature	-40°C ~ 85°C
Type 系列：	MHz Crystal	脚位 Termination：	2 pad
频率 frequency ：	8 MHz	封装类型 Package Type：	HC-49S 2-SMD
Frequency Stability频率稳定度	±30ppm	高度 Package Height：	4.10mm
frequency tolerance频率容差	±15ppm	最小包装数 MPQ ：	-
Load capacitance 负载电容	18pF	包装 Packaging：	Tape and Reel
Size / Dimension 尺寸	11.40mm x 4.50mm	安装方式 Mounting Style：	Surface Mount

FCX9M00800018Y2J,Fujicom石英晶振,FCX-9M无源晶振

FCT2T032768C5T3	Fujicom晶振	FCT-2T	kHz Crystal	32.768 kHz	-	-	12.5pF	30 kOhms
FCT3T032768C5R3	Fujicom晶振	FCT-3T	kHz Crystal	32.768 kHz	-	-	12.5pF	30 kOhms
FCT3T032768C5P3	Fujicom晶振	FCT-3T	kHz Crystal	32.768 kHz	-	-	12.5pF	30 kOhms
FCT2T032768C5R3	Fujicom晶振	FCT-2T	kHz Crystal	32.768 kHz	-	-	12.5pF	30 kOhms
FCT3T032768C5E3	Fujicom晶振	FCT-3T	kHz Crystal	32.768 kHz	-	-	12.5pF	30 kOhms
FCT3T032768C5D3	Fujicom晶振	FCT-3T	kHz Crystal	32.768 kHz	-	-	12.5pF	30 kOhms
FCT2T032768C5Y3	Fujicom晶振	FCT-2T	kHz Crystal	32.768 kHz	±20ppm	-	12.5pF	30 kOhms
FCT2T032768C5E3	Fujicom晶振	FCT-2T	kHz Crystal	32.768 kHz	-	-	12.5pF	30 kOhms
FCT3T032768C5T3	Fujicom晶振	FCT-3T	kHz Crystal	32.768 kHz	-	-	12.5pF	30 kOhms
FCT2T032768C5D3	Fujicom晶振	FCT-2T	kHz Crystal	32.768 kHz	-	-	12.5pF	30 kOhms
FCT3T032768C5Y3	Fujicom晶振	FCT-3T	kHz Crystal	32.768 kHz	-	-	12.5pF	30 kOhms
FCT3T032768C5W3	Fujicom晶振	FCT-3T	kHz Crystal	32.768 kHz	-	-	12.5pF	30 kOhms
FCT2T032768C5P3	Fujicom晶振	FCT-2T	kHz Crystal	32.768 kHz	-	-	12.5pF	30 kOhms
FCT2T032768C5W3	Fujicom晶振	FCT-2T	kHz Crystal	32.768 kHz	-	-	12.5pF	30 kOhms
FCX9M01843220E5J	Fujicom晶振	FCX-9M	MHz Crystal	18.432 MHz	±30ppm	±30ppm	20pF	40 Ohms
FCX9M01431818W6L	Fujicom晶振	FCX-9M	MHz Crystal	14.31818 MHz	±50ppm	±50ppm	18pF	10 Ohms
FCX9M01200016P5K	Fujicom晶振	FCX-9M	MHz Crystal	12 MHz	±35ppm	±30ppm	16pF	50 Ohms
FCX9M01200009E5L	Fujicom晶振	FCX-9M	MHz Crystal	12 MHz	±50ppm	±30ppm	9pF	50 Ohms
FCX9M01431818E5L	Fujicom晶振	FCX-9M	MHz Crystal	14.31818 MHz	±50ppm	±30ppm	18pF	50 Ohms
FCX9M01843220E5L	Fujicom晶振	FCX-9M	MHz Crystal	18.432 MHz	±50ppm	±30ppm	20pF	40 Ohms
FCX9M00800018Y6L	Fujicom晶振	FCX-9M	MHz Crystal	8 MHz	±50ppm	±50ppm	18pF	80 Ohms
FCX9M01843218W6L	Fujicom晶振	FCX-9M	MHz Crystal	18.432 MHz	±50ppm	±50ppm	18pF	10 Ohms
FCX9M01843220E4K	Fujicom晶振	FCX-9M	MHz Crystal	18.432 MHz	±35ppm	±25ppm	20pF	40 Ohms
FCX9M02700018E5L	Fujicom晶振	FCX-9M	MHz Crystal	27 MHz	±50ppm	±30ppm	18pF	40 Ohms
FCX9M01431818I5L	Fujicom晶振	FCX-9M	MHz Crystal	14.31818 MHz	±50ppm	±30ppm	18pF	50 Ohms
FCX9M01431818Y3Z	Fujicom晶振	FCX-9M	MHz Crystal	14.31818 MHz	±100ppm	±20ppm	18pF	50 Ohms
FCX9M02712018E5L	Fujicom晶振	FCX-9M	MHz Crystal	27.12 MHz	±50ppm	±30ppm	18pF	40 Ohms
FCX9M02700018E3L	Fujicom晶振	FCX-9M	MHz Crystal	27 MHz	±50ppm	±20ppm	18pF	40 Ohms
FCX9M01431818O5Z	Fujicom晶振	FCX-9M	MHz Crystal	14.31818 MHz	±100ppm	±30ppm	18pF	50 Ohms
FCX9M01431818E1D	Fujicom晶振	FCX-9M	MHz Crystal	14.31818 MHz	±10ppm	±10ppm	18pF	50 Ohms
FCX9M00800018O5Z	Fujicom晶振	FCX-9M	MHz Crystal	8 MHz	±100ppm	±30ppm	18pF	80 Ohms
FCX9M00800018Y5Z	Fujicom晶振	FCX-9M	MHz Crystal	8 MHz	±100ppm	±30ppm	18pF	60 Ohms
FCX9M00800018Y5L	Fujicom晶振	FCX-9M	MHz Crystal	8 MHz	±50ppm	±30ppm	18pF	80 Ohms
FCX9M01200018E3L	Fujicom晶振	FCX-9M	MHz Crystal	12 MHz	±50ppm	±20ppm	18pF	50 Ohms
FCX9M01200018E3J	Fujicom晶振	FCX-9M	MHz Crystal	12 MHz	±30ppm	±20ppm	18pF	50 Ohms
FCX9M02700018E5J	Fujicom晶振	FCX-9M	MHz Crystal	27 MHz	±30ppm	±30ppm	18pF	100 Ohms
FCX9M01431815W6L	Fujicom晶振	FCX-9M	MHz Crystal	14.31818 MHz	±50ppm	±50ppm	15pF	50 Ohms
FCX9M01843218Y5J	Fujicom晶振	FCX-9M	MHz Crystal	18.432 MHz	±30ppm	±30ppm	18pF	40 Ohms
FCX9M01431818Y5J	Fujicom晶振	FCX-9M	MHz Crystal	14.31818 MHz	±30ppm	±30ppm	18pF	50 Ohms
FCX9M01843218I5L	Fujicom晶振	FCX-9M	MHz Crystal	18.432 MHz	±50ppm	±30ppm	18pF	40 Ohms
FCX9M02863616Y5J	Fujicom晶振	FCX-9M	MHz Crystal	28.63636 MHz	±30ppm	±30ppm	16pF	40 Ohms
FCX9M02700018E1D	Fujicom晶振	FCX-9M	MHz Crystal	27 MHz	±10ppm	±10ppm	18pF	100 Ohms
FCX9M01843218O5Z	Fujicom晶振	FCX-9M	MHz Crystal	18.432 MHz	±100ppm	±30ppm	18pF	40 Ohms
FCX9M02863615Y5K	Fujicom晶振	FCX-9M	MHz Crystal	28.63636 MHz	±35ppm	±30ppm	15pF	40 Ohms
FCX9M00800018Y4J	Fujicom晶振	FCX-9M	MHz Crystal	8 MHz	±30ppm	±25ppm	18pF	60 Ohms
FCX9M02700018I6L	Fujicom晶振	FCX-9M	MHz Crystal	27 MHz	±50ppm	±50ppm	18pF	40 Ohms
FCX9M01200018E1D	Fujicom晶振	FCX-9M	MHz Crystal	12 MHz	±10ppm	±10ppm	18pF	50 Ohms
FCX9M01431818E5J	Fujicom晶振	FCX-9M	MHz Crystal	14.31818 MHz	±30ppm	±30ppm	18pF	50 Ohms
FCX9M01843218Y3L	Fujicom晶振	FCX-9M	MHz Crystal	18.432 MHz	±50ppm	±20ppm	18pF	40 Ohms
FCX9M02700018Y5J	Fujicom晶振	FCX-9M	MHz Crystal	27 MHz	±30ppm	±30ppm	18pF	40 Ohms
FCX9M02700020Y5L	Fujicom晶振	FCX-9M	MHz Crystal	27 MHz	±50ppm	±30ppm	20pF	40 Ohms
FCX9M02700018O5Z	Fujicom晶振	FCX-9M	MHz Crystal	27 MHz	±100ppm	±30ppm	18pF	40 Ohms
FCX9M01200016Y5J	Fujicom晶振	FCX-9M	MHz Crystal	12 MHz	±30ppm	±30ppm	16pF	50 Ohms
FCX9M00800018I5L	Fujicom晶振	FCX-9M	MHz Crystal	8 MHz	±50ppm	±30ppm	18pF	80 Ohms
FCX9M02700018W6L	Fujicom晶振	FCX-9M	MHz Crystal	27 MHz	±50ppm	±50ppm	18pF	10 Ohms
FCX9M00800018W6L	Fujicom晶振	FCX-9M	MHz Crystal	8 MHz	±50ppm	±50ppm	18pF	80 Ohms
FCX9M00800018Y5J	Fujicom晶振	FCX-9M	MHz Crystal	8 MHz	±30ppm	±30ppm	18pF	80 Ohms
FCX9M01431818E3L	Fujicom晶振	FCX-9M	MHz Crystal	14.31818 MHz	±50ppm	±20ppm	18pF	50 Ohms
FCX9M01200009E5J	Fujicom晶振	FCX-9M	MHz Crystal	12 MHz	±30ppm	±30ppm	9pF	50 Ohms
FCX9M00800018Y2J	Fujicom晶振	FCX-9M	MHz Crystal	8 MHz	±30ppm	±15ppm	18pF	80 Ohms
