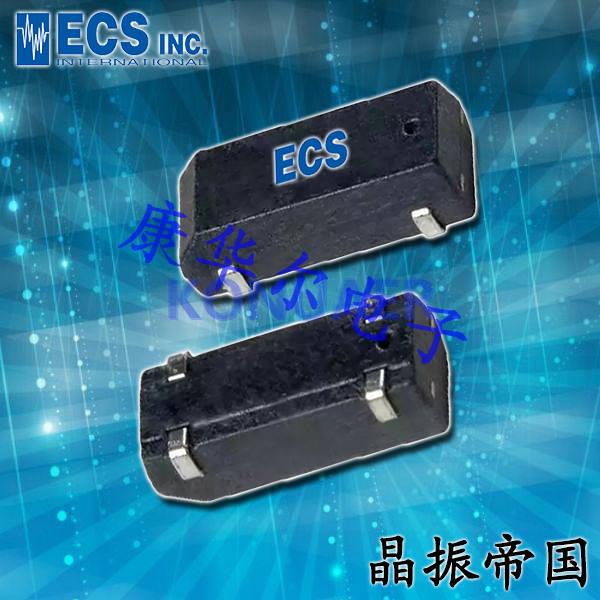

ECS-120-S-7S-TR无源晶振,ECS晶振,ECX-3S贴片晶振

原厂型号 Original model ：	ECS-120-S-7S-TR
品牌 brand ：	ECS无源晶振
型号名称 Model name：	ECX-3S
Type 系列：	MHz Crystal
频率 frequency ：	12MHz
Frequency Stability频率稳定度	±50ppm
frequency tolerance频率容差	±50ppm
Load capacitance 负载电容	Series
Size / Dimension 尺寸	12.50mm x 4.60mm

订购热线：0755-27838351

ECS-120-S-7S-TR无源晶振,ECS晶振,ECX-3S贴片晶振

原厂型号 Original model ：	ECS-120-S-7S-TR	品牌 brand ：	ECS伊西斯无源晶振
品牌 brand ：	ECS无源晶振	ESR（等效串联电阻）ESR (Equivalent Series Resistance)	60 Ohm
型号名称 Model name：	ECX-3S	温度 Operating Temperature	-10°C ~ 70°C
Type 系列：	MHz Crystal	脚位 Termination：	4 pad
频率 frequency ：	12MHz	封装类型 Package Type：	4-SOJ晶振
Frequency Stability频率稳定度	±50ppm	高度 Package Height：	3.70mm
frequency tolerance频率容差	±50ppm	最小包装数 MPQ ：	-
Load capacitance 负载电容	Series	包装 Packaging：	Tape and Reel
Size / Dimension 尺寸	12.50mm x 4.60mm	安装方式 Mounting Style：	Surface Mount

ECS-120-S-7S-TR无源晶振,ECS晶振,ECX-3S贴片晶振

ECS-120-S-7S-TR	ECX-3S	MHz Crystal	12MHz	±50ppm	±30ppm	Series	60 Ohm
ECS-122.8-20-7S-TR	ECX-3S	MHz Crystal	12.288MHz	±50ppm	±30ppm	20pF	60 Ohm
ECS-122.8-S-7S-TR	ECX-3S	MHz Crystal	12.288MHz	±50ppm	±30ppm	Series	60 Ohm
ECS-143-20-7S-TR	ECX-3S	MHz Crystal	14.31818MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-143-S-7S-TR	ECX-3S	MHz Crystal	14.31818MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-147.4-20-7S-TR	ECX-3S	MHz Crystal	14.7456MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-147.4-S-7S-TR	ECX-3S	MHz Crystal	14.7456MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-160-20-7S-TR	ECX-3S	MHz Crystal	16MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-160-S-7S-TR	ECX-3S	MHz Crystal	16MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-184-S-7S-TR	ECX-3S	MHz Crystal	18.432MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-196.6-20-7S-TR	ECX-3S	MHz Crystal	19.6608MHz	±50ppm	±30ppm	20pF	40 Ohm
ECS-196.6-S-7S-TR	ECX-3S	MHz Crystal	19.6608MHz	±50ppm	±30ppm	Series	40 Ohm
ECS-200-16-7S-TR	ECX-3S	MHz Crystal	20MHz	±50ppm	±30ppm	16pF	30 Ohm
ECS-200-20-7S-TR	ECX-3S	MHz Crystal	20MHz	±50ppm	±30ppm	20pF	30 Ohm
ECS-200-S-7S-TR	ECX-3S	MHz Crystal	20MHz	±50ppm	±30ppm	Series	30 Ohm
ECS-235.92-S-7S-TR	ECX-3S	MHz Crystal	23.592MHz	±50ppm	±30ppm	Series	30 Ohm
ECS-240-16-7S-TR	ECX-3S	MHz Crystal	24MHz	±50ppm	±30ppm	16pF	30 Ohm
ECS-240-20-7S-TR	ECX-3S	MHz Crystal	24MHz	±50ppm	±30ppm	20pF	30 Ohm
ECS-240-S-7S-TR	ECX-3S	MHz Crystal	24MHz	±50ppm	±30ppm	Series	30 Ohm
ECS-35-17-7S-TR	ECX-3S	MHz Crystal	3.579545MHz	±50ppm	±30ppm	17pF	250 Ohm
ECS-35-S-7S-TR	ECX-3S	MHz Crystal	3.579545MHz	±50ppm	±30ppm	Series	250 Ohm
ECS-36-20-7S-TR	ECX-3S	MHz Crystal	3.6864MHz	±50ppm	±30ppm	20pF	250 Ohm
ECS-36-S-7S-TR	ECX-3S	MHz Crystal	3.6864MHz	±50ppm	±30ppm	Series	250 Ohm
ECS-40-20-7S-TR	ECX-3S	MHz Crystal	4MHz	±50ppm	±30ppm	20pF	150 Ohm
ECS-40-S-7S-TR	ECX-3S	MHz Crystal	4MHz	±50ppm	±30ppm	Series	150 Ohm
ECS-41-16-7S-TR	ECX-3S	MHz Crystal	4.096MHz	±50ppm	±30ppm	16pF	150 Ohm
ECS-42-12-7S-TR	ECX-3S	MHz Crystal	4.194304MHz	±50ppm	±30ppm	12pF	150 Ohm
ECS-44-20-7S-TR	ECX-3S	MHz Crystal	4.433618MHz	±50ppm	±30ppm	20pF	150 Ohm
ECS-49-20-7S-TR	ECX-3S	MHz Crystal	4.9152MHz	±50ppm	±30ppm	20pF	150 Ohm
ECS-49-S-7S-TR	ECX-3S	MHz Crystal	4.9152MHz	±50ppm	±30ppm	Series	150 Ohm
ECS-50-20-7S-TR	ECX-3S	MHz Crystal	5MHz	±50ppm	±30ppm	20pF	120 Ohm
ECS-60-32-7S-TR	ECX-3S	MHz Crystal	6MHz	±50ppm	±30ppm	32pF	100 Ohm
ECS-60-S-7S-TR	ECX-3S	MHz Crystal	6MHz	±50ppm	±30ppm	Series	100 Ohm
ECS-61-32-7S-TR	ECX-3S	MHz Crystal	6.144MHz	±50ppm	±30ppm	32pF	100 Ohm
ECS-65-12-7S-TR	ECX-3S	MHz Crystal	6.5536MHz	±50ppm	±30ppm	12pF	100 Ohm
ECS-73-20-7S-TR	ECX-3S	MHz Crystal	7.3728MHz	±50ppm	±30ppm	20pF	80 Ohm
ECS-73-S-7S-TR	ECX-3S	MHz Crystal	7.3728MHz	±50ppm	±30ppm	Series	80 Ohm
ECS-80-16-7S-TR	ECX-3S	MHz Crystal	8MHz	±50ppm	±30ppm	16pF	80 Ohm
ECS-80-S-7S-TR	ECX-3S	MHz Crystal	8MHz	±50ppm	±30ppm	Series	80 Ohm
ECS-98.3-20-7S-TR	ECX-3S	MHz Crystal	9.8304MHz	±50ppm	±30ppm	20pF	60 Ohm
ECS-98.3-S-7S-TR	ECX-3S	MHz Crystal	9.8304MHz	±50ppm	±30ppm	Series	60 Ohm
ECS-100-18-7SX-TR	ECX-3SX	MHz Crystal	10MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-100-20-7SX-TR	ECX-3SX	MHz Crystal	10MHz	±50ppm	±30ppm	20pF	50 Ohm
ECS-100-S-7SX-TR	ECX-3SX	MHz Crystal	10MHz	±50ppm	±30ppm	Series	50 Ohm
ECS-102.4-18-7SX-TR	ECX-3SX	MHz Crystal	10.24MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-110.5-18-7SX-TR	ECX-3SX	MHz Crystal	11.0592MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-110.5-20-7SX-TR	ECX-3SX	MHz Crystal	11.0592MHz	±50ppm	±30ppm	20pF	50 Ohm
ECS-110.5-S-7SX-TR	ECX-3SX	MHz Crystal	11.0592MHz	±50ppm	±30ppm	Series	50 Ohm
ECS-120-18-7SX-TR	ECX-3SX	MHz Crystal	12MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-120-20-7SX-TR	ECX-3SX	MHz Crystal	12MHz	±50ppm	±30ppm	20pF	50 Ohm
ECS-120-S-7SX-TR	ECX-3SX	MHz Crystal	12MHz	±50ppm	±30ppm	Series	50 Ohm
ECS-122.8-18-7SX-TR	ECX-3SX	MHz Crystal	12.288MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-122.8-20-7SX-TR	ECX-3SX	MHz Crystal	12.288MHz	±50ppm	±30ppm	20pF	50 Ohm
ECS-122.8-S-7SX-TR	ECX-3SX	MHz Crystal	12.288MHz	±50ppm	±30ppm	Series	50 Ohm
ECS-123.52-18-7SX	ECX-3SX	MHz Crystal	12.352MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-125-18-7SX-TR	ECX-3SX	MHz Crystal	12.5MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-135.0-18-7SX-TR	ECX-3SX	MHz Crystal	13.5MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-143-18-7SX-TR	ECX-3SX	MHz Crystal	14.31818MHz	±50ppm	±30ppm	18pF	50 Ohm
ECS-143-20-7SX-TR	ECX-3SX	MHz Crystal	14.31818MHz	±50ppm	±30ppm	20pF	50 Ohm
ECS-143-S-7SX-TR	ECX-3SX	MHz Crystal	14.31818MHz	±50ppm	±30ppm	Series	50 Ohm
