ECS-120-18-23A-EN-TR,ECS欧美进口晶振,ECX-64A谐振器

原厂型号 Original model ：	ECS-120-18-23A-EN-TR
品牌 brand ：	ECS无源晶振
型号名称 Model name：	ECX-64A
Type 系列：	MHz Crystal
频率 frequency ：	12MHz
Frequency Stability频率稳定度	±50ppm
frequency tolerance频率容差	±30ppm
Load capacitance 负载电容	18pF

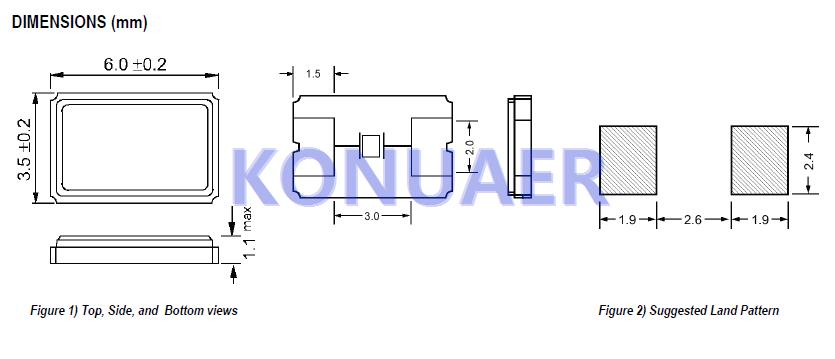

Size / Dimension 尺寸	6.00mm x 3.50mm

订购热线：0755-27838351

ECS-120-18-23A-EN-TR,ECS欧美进口晶振,ECX-64A谐振器

原厂型号 Original model ：	ECS-120-18-23A-EN-TR	品牌 brand ：	ECS欧美晶振
品牌 brand ：	ECS无源晶振	ESR（等效串联电阻）ESR (Equivalent Series Resistance)	80 Ohm
型号名称 Model name：	ECX-64A	温度 Operating Temperature	-40°C ~ 85°C
Type 系列：	MHz Crystal	脚位 Termination：	2 pad
频率 frequency ：	12MHz	封装类型 Package Type：	2-SMD
Frequency Stability频率稳定度	±50ppm	高度 Package Height：	1.10mm
frequency tolerance频率容差	±30ppm	最小包装数 MPQ ：	-
Load capacitance 负载电容	18pF	包装 Packaging：	Tape and Reel
Size / Dimension 尺寸	6.00mm x 3.50mm	安装方式 Mounting Style：	Surface Mount

ECS-120-18-23A-EN-TR,ECS欧美进口晶振,ECX-64A谐振器

ECS-120-9-42-CKM-TR	ECX-42	MHz Crystal	12MHz	±10ppm	±10ppm	9pF
ECS-130-9-42-CKM-TR	ECX-42	MHz Crystal	13MHz	±10ppm	±10ppm	9pF
ECS-144-9-42-CKM-TR	ECX-42	MHz Crystal	14.4MHz	±10ppm	±10ppm	9pF
ECS-160-9-42-CKM-TR	ECX-42	MHz Crystal	16MHz	±10ppm	±10ppm	9pF
ECS-196.8-9-42-CKM-TR	ECX-42	MHz Crystal	19.68MHz	±10ppm	±10ppm	9pF
ECS-240-13-42-CKM-TR	ECX-42	MHz Crystal	24MHz	±10ppm	±10ppm	13pF
ECS-260-13-42-CKM-TR	ECX-42	MHz Crystal	26MHz	±10ppm	±10ppm	13pF
ECS-320-13-42-CKM-TR	ECX-42	MHz Crystal	32MHz	±10ppm	±10ppm	13pF
ECS-100-20-30B-TR	ECX-53B	MHz Crystal	10MHz	±50ppm	±30ppm	20pF
ECS-100-8-30B-CKM	ECX-53B	MHz Crystal	10MHz	±10ppm	±10ppm	8pF
ECS-120-20-30B-TR	ECX-53B	MHz Crystal	12MHz	±50ppm	±30ppm	20pF
ECS-120-8-30B-CKM	ECX-53B	MHz Crystal	12MHz	±10ppm	±10ppm	8pF
ECS-130-8-30B-CKM	ECX-53B	MHz Crystal	13MHz	±10ppm	±10ppm	8pF
ECS-135.6-8-30B-CKM	ECX-53B	MHz Crystal	13.56MHz	±10ppm	±10ppm	8pF
ECS-143-20-30B-TR	ECX-53B	MHz Crystal	14.31818MHz	±50ppm	±30ppm	20pF
ECS-160-20-30B-TR	ECX-53B	MHz Crystal	16MHz	±50ppm	±30ppm	20pF
ECS-160-8-30B-CKM	ECX-53B	MHz Crystal	16MHz	±10ppm	±10ppm	8pF
ECS-192-8-30B-CKM	ECX-53B	MHz Crystal	19.28MHz	±10ppm	±10ppm	8pF
ECS-200-20-30B-TR	ECX-53B	MHz Crystal	20MHz	±50ppm	±30ppm	20pF
ECS-200-8-30B-CKM	ECX-53B	MHz Crystal	20MHz	±10ppm	±10ppm	8pF
ECS-240-20-30B-TR	ECX-53B	MHz Crystal	24MHz	±50ppm	±30ppm	20pF
ECS-240-8-30B-CKM	ECX-53B	MHz Crystal	24MHz	±10ppm	±10ppm	8pF
ECS-245-20-30B-TR	ECX-53B	MHz Crystal	24.576MHz	±50ppm	±30ppm	20pF
ECS-250-20-30B-TR	ECX-53B	MHz Crystal	25MHz	±50ppm	±30ppm	20pF
ECS-250-8-30B-CKM	ECX-53B	MHz Crystal	25MHz	±10ppm	±10ppm	8pF
ECS-260-8-30B-CKM	ECX-53B	MHz Crystal	26MHz	±10ppm	±10ppm	8pF
ECS-270-20-30B-TR	ECX-53B	MHz Crystal	27MHz	±50ppm	±30ppm	20pF
ECS-270-S-30B-TR	ECX-53B	MHz Crystal	27MHz	±50ppm	±30ppm	Series
ECS-300-20-30B-TR	ECX-53B	MHz Crystal	30MHz	±50ppm	±30ppm	20pF
ECS-300-8-30B-CKM	ECX-53B	MHz Crystal	30MHz	±10ppm	±10ppm	8pF
ECS-300-S-30B-TR	ECX-53B	MHz Crystal	30MHz	±50ppm	±30ppm	Series
ECS-320-20-30B-TR	ECX-53B	MHz Crystal	32MHz	±50ppm	±30ppm	20pF
ECS-320-8-30B-CKM	ECX-53B	MHz Crystal	32MHz	±10ppm	±10ppm	8pF
ECS-320-S-30B-TR	ECX-53B	MHz Crystal	32MHz	±50ppm	±30ppm	Series
ECS-360-20-30B-TR	ECX-53B	MHz Crystal	36MHz	±50ppm	±30ppm	20pF
ECS-360-S-30B-TR	ECX-53B	MHz Crystal	36MHz	±50ppm	±30ppm	Series
ECS-400-20-30B-TR	ECX-53B	MHz Crystal	40MHz	±50ppm	±30ppm	20pF
ECS-400-S-30B-TR	ECX-53B	MHz Crystal	40MHz	±50ppm	±30ppm	Series
ECS-500-20-30B-TR	ECX-53B	MHz Crystal	50MHz	±50ppm	±30ppm	20pF
ECS-500-S-30B-TR	ECX-53B	MHz Crystal	50MHz	±50ppm	±30ppm	Series
ECS-100-20-30B-DU	ECX-53B-DU	MHz Crystal	10MHz	±100ppm	±30ppm	20pF
ECS-120-20-30B-DU	ECX-53B-DU	MHz Crystal	12MHz	±100ppm	±30ppm	20pF
ECS-143-20-30B-DU	ECX-53B-DU	MHz Crystal	14.31818MHz	±100ppm	±30ppm	20pF
ECS-160-20-30B-DU	ECX-53B-DU	MHz Crystal	16MHz	±100ppm	±30ppm	20pF
ECS-200-20-30B-DU	ECX-53B-DU	MHz Crystal	20MHz	±100ppm	±30ppm	20pF
ECS-240-20-30B-DU	ECX-53B-DU	MHz Crystal	24MHz	±100ppm	±30ppm	20pF
ECS-240-30-30B-DU-TR	ECX-53B-DU	MHz Crystal	24MHz	±100ppm	±30ppm	30pF
ECS-250-20-30B-DU	ECX-53B-DU	MHz Crystal	25MHz	±100ppm	±30ppm	20pF
ECS-270-20-30B-DU	ECX-53B-DU	MHz Crystal	27MHz	±100ppm	±30ppm	20pF
ECS-300-20-30B-DU	ECX-53B-DU	MHz Crystal	30MHz	±100ppm	±30ppm	20pF
ECS-320-20-30B-DU	ECX-53B-DU	MHz Crystal	32MHz	±100ppm	±30ppm	20pF
ECS-400-20-30B-DU	ECX-53B-DU	MHz Crystal	40MHz	±100ppm	±30ppm	20pF
ECS-480-20-30B-DU	ECX-53B-DU	MHz Crystal	48MHz	±100ppm	±30ppm	20pF
ECS-100-18-30BQ-DS	ECX-53BQ	MHz Crystal	10MHz	±100ppm	±30ppm	18pF
ECS-120-18-30BQ-DS	ECX-53BQ	MHz Crystal	12MHz	±100ppm	±30ppm	18pF
ECS-135.6-18-30BQ-DS	ECX-53BQ	MHz Crystal	13.56MHz	±100ppm	±30ppm	18pF
ECS-143-18-30BQ-DS	ECX-53BQ	MHz Crystal	14.31818MHz	±100ppm	±30ppm	18pF
ECS-160-18-30BQ-DS	ECX-53BQ	MHz Crystal	16MHz	±100ppm	±30ppm	18pF
ECS-184-18-30BQ-DS	ECX-53BQ	MHz Crystal	18.432MHz	±100ppm	±30ppm	18pF
ECS-196.6-18-30BQ-DS	ECX-53BQ	MHz Crystal	19.6608MHz	±100ppm	±30ppm	18pF
